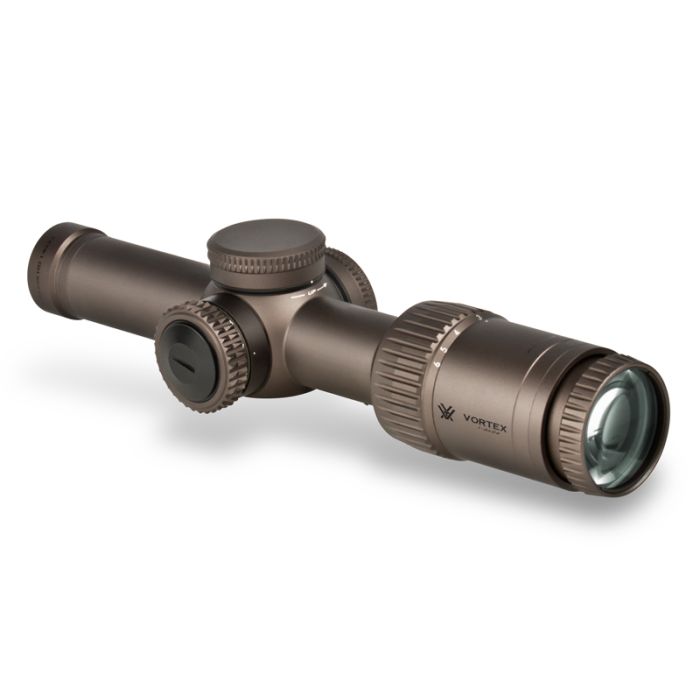

RAZOR® HD GEN II-E 1-6X24 RIFLESCOPE
Every component, feature and performance characteristic of the Razor HD Gen II-E 1-6×24 riflescope is so well thought out and executed, it’s almost scary. And in 2018, its nearly ¼ of a pound lighter. Perfect for the AR platform, the Gen II-E 1-6 is a top-tier optical solution for short to medium-range tactical applications. Optically, it delivers the highest level of clarity, resolution, color accuracy, light transmission, and edge-to-edge sharpness. The ultra-forgiving eyebox with generous eye relief generates a heads-up-display-like sight picture for fast target acquisition and optimal monitoring of the surrounding environment. A true, daylight-bright illuminated center dot gives shooters ultimate close-quarters versatility.
The JM-1 BDC Reticle
Simple, intuitive and fast, the JM-1 BDC reticle is exclusive to Vortex. Designed in collaboration with world-renowned competitive shooter, instructor and gunsmith, Jerry Miculek, the JM-1 reticle facilitates rapid, accurate shooting at distances from point blank to 600 yards. A true daylight-bright illuminated center dot gives shooters red dot sight functionality and ultimate close-quarters versatility. Illumination is accessed and activated via the locking illumination dial positioned cleanly on the left side of the turret housing. Features 11 intensity levels with an off-position between each setting.
Magnification | 1-6 x |
Objective Lens Diameter | 24 mm |
Eye Relief | 4 inches |
Field of View | 115.2-20.5 feet/100 yards |
Tube Size | 30 mm |
Turret Style | Low Capped |
Adjustment Graduation | 1/2 MOA |
Travel per Rotation | 50 MOA |
Max Elevation Adjustment | 150 MOA |
Max Windage Adjustment | 150 MOA |
Parallax Setting | 100 yards |
Length | 10.1 inches |
Weight | 21.5 ounces |
Марка | Vortex Optics |
---|---|
Magnification | 1-6x |
